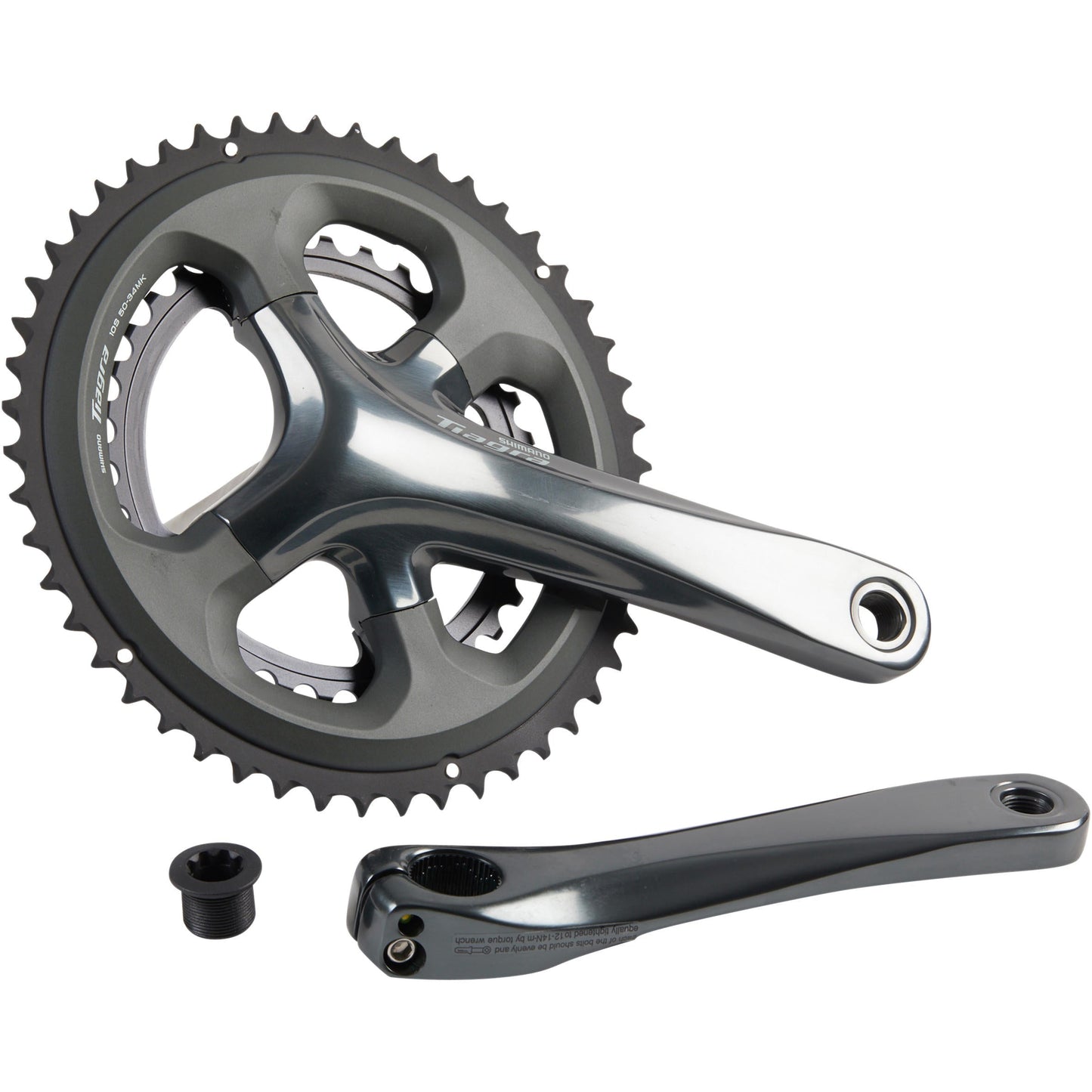

SHIMANO TIAGRA Road Crankset FC 4700 2x10 Speed

The new SHIMANO TIAGRA FC-4700 crank balances weight and efficiency without sacrificing stiffness. It is offered in 52-36, 50-34T, and a new 48-34T chainring options and 165, 170, 172.5, and 175mm crank arm lengths.

MODEL NO : FC-4700
SERIES : SHIMANO TIAGRA 4700 Series
Threaded bottom bracket shell width (mm)_70 : Yes
2-PIECE CRANKSET : Yes
Chainring combination : 52-36T 50-34T 48-34T
Compatible bottom bracket type Outboard : Yes
Crank fixing screw included : Yes
Crank arm length (mm) 165 : Yes
Crank arm length (mm) 170 : Yes
Crank arm length (mm) 172.5: Yes
Crank arm length (mm) 175 : Yes
Spider/Gear arms : 4
Optional chain guard Without chain/bash guard : Yes
Recommended bottom bracket Press-fit : BB-RS500-PB
Recommended bottom bracket Threaded (normal) : BB-RS500
Threaded bottom bracket shell width (mm)_68 : Yes
Q-factor (mm) : 150
Chain line (mm) : 43.5
Compatible chain : HG-X 10-speed
P.C.D. left / right (mm) : 110
P.C.D. (mm) : 110
Rear speeds : 10
