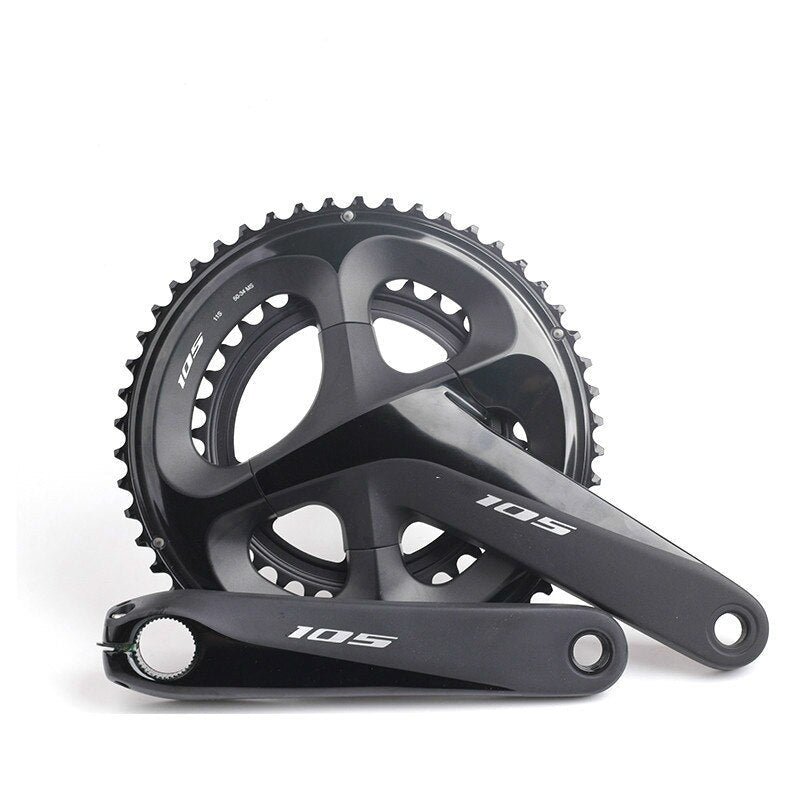

SHIMANO 105 HOLLOWTECH II Road Crankset FC R7000 2x11 Speed 50-34T 170mm

The redesigned SHIMANO 105 FC-R7000 crank balances weight and efficiency without sacrificing stiffness. Its wider gear pitch increases clearance with small gearings on modern 135mm O.L.D. frames. It is offered in 53-39, 52-36, and 50-34T chainring options and 160, 165, 170, 172.5, and 175mm crank arm lengths. Silky Black and Spark Silver color options are available.

MODEL NO              : FC-R7000

SERIES                     : SHIMANO 105 R7000 Series

Average weight       : 713.4 (50-34T) 742.6 (52-36T) 757.8 (53-39T)

Threaded bottom bracket shell width (mm)_70    : Yes

Chainring combination   :50-34T

Compatible bottom bracket type Outboard  : Yes

Crank fixing screw included   : Yes

Crank arm length (mm) 160    : Yes

Crank arm length (mm) 165    : Yes

Crank arm length (mm) 170    : Yes

Crank arm length (mm) 172.5 : Yes

Crank arm length (mm) 175    : Yes

Spider/Gear arms                   : 4

HOLLOWTECH II                      : Yes

HOLLOWTECH crank arm        : Yes

Optional chain guard Without chain/bash guard  : Yes

Recommended bottom bracket Press-fit               : SM-BB72-41B

Recommended bottom bracket Threaded (normal)      : SM-BBR60

Threaded bottom bracket shell width (mm)_68    :  Yes

Q-factor (mm)                 : 146

Chain line (mm)              : 43.5

Compatible chain           : HG-EV 11-speed, HG-X11

P.C.D. left / right (mm)    : 110

P.C.D. (mm)                     : 110

Rear speeds                    : 11
